Register and download
This guide covers ps-leaderboard installation on Windows — a PractiScore complement for live scoreboards and match management: extract to C:\ps-leaderboard, license activation, service setup, pairing tablets on the same network and access to the real-time admin panel.
A complement for those who already run matches with PractiScore: scoring and match management stay in the app. ps-leaderboard adds live scoreboards, TV kiosk mode, broadcast overlays (OBS/Prism), a web admin panel and WinMSS export — without replacing PractiScore.
Before installing: create your free account at My account (/my-account) and download ps-leaderboard.zip from login.scoring.services (use your signup credentials).
System requirements
- Windows 7, 8, 10 or 11 (required)
- RAM: 4 GB minimum (8 GB recommended)
- Disk: 500 MB free
- Internet for initial activation and updates
Network requirements
- Computer and PractiScore 1.7.x or 2.0.x tablets on the same local network
- Same network ensures tablet detection and communication
- Firewall must not block service ports (e.g. 5001)
1. Download and extraction
-
Download ps-leaderboard.zip
After signup, download ps-leaderboard.zip from login.scoring.services. Save to an easy folder such as Downloads.
-
Extract to C:\
Right-click ps-leaderboard.zip → Extract All… → destination C:\. This creates C:\ps-leaderboard with ps_service_manager.exe.

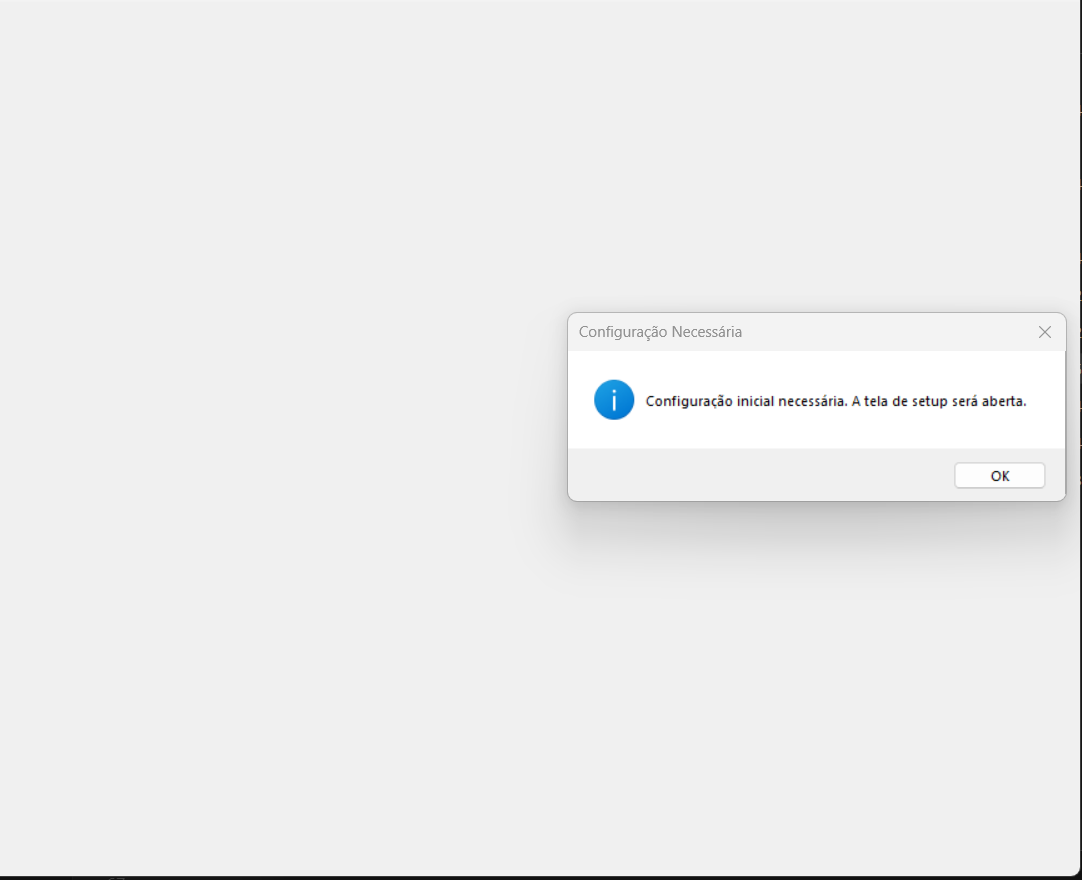

2. Initial setup
2.1 Get license credentials
-
Open login.scoring.services

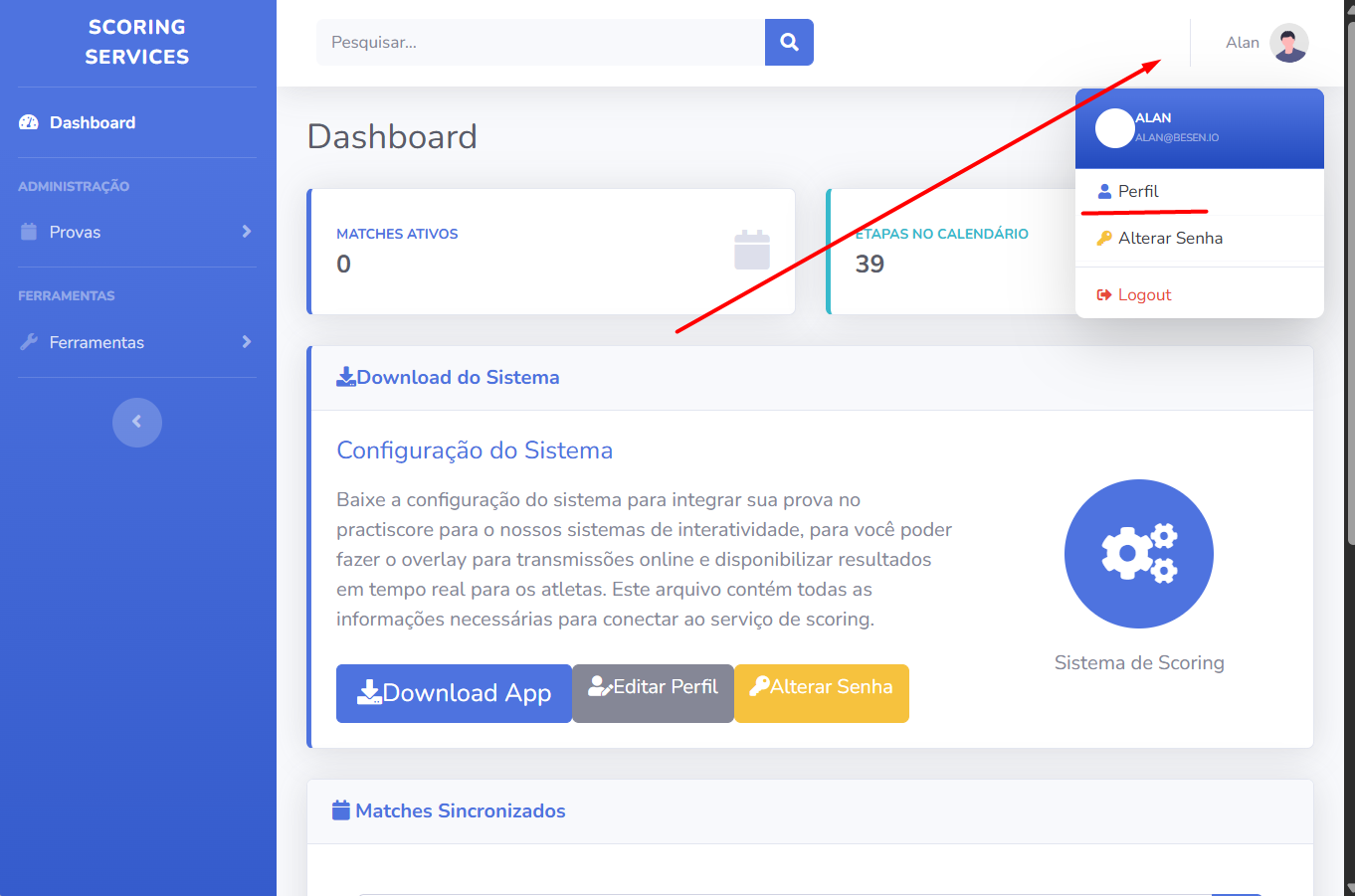

Sign in and click Profile in the top menu.
-

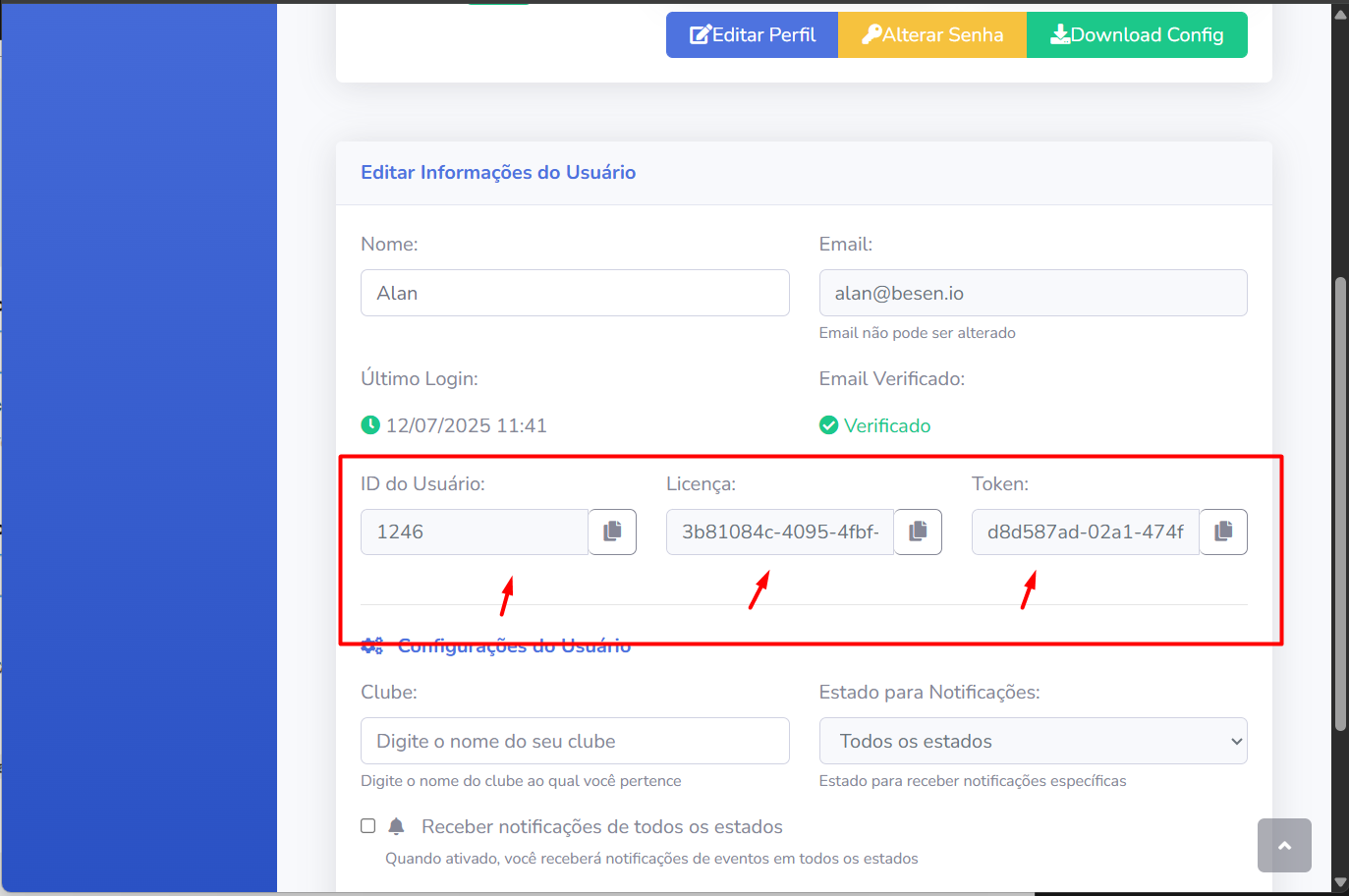

Copy License, Token and User ID

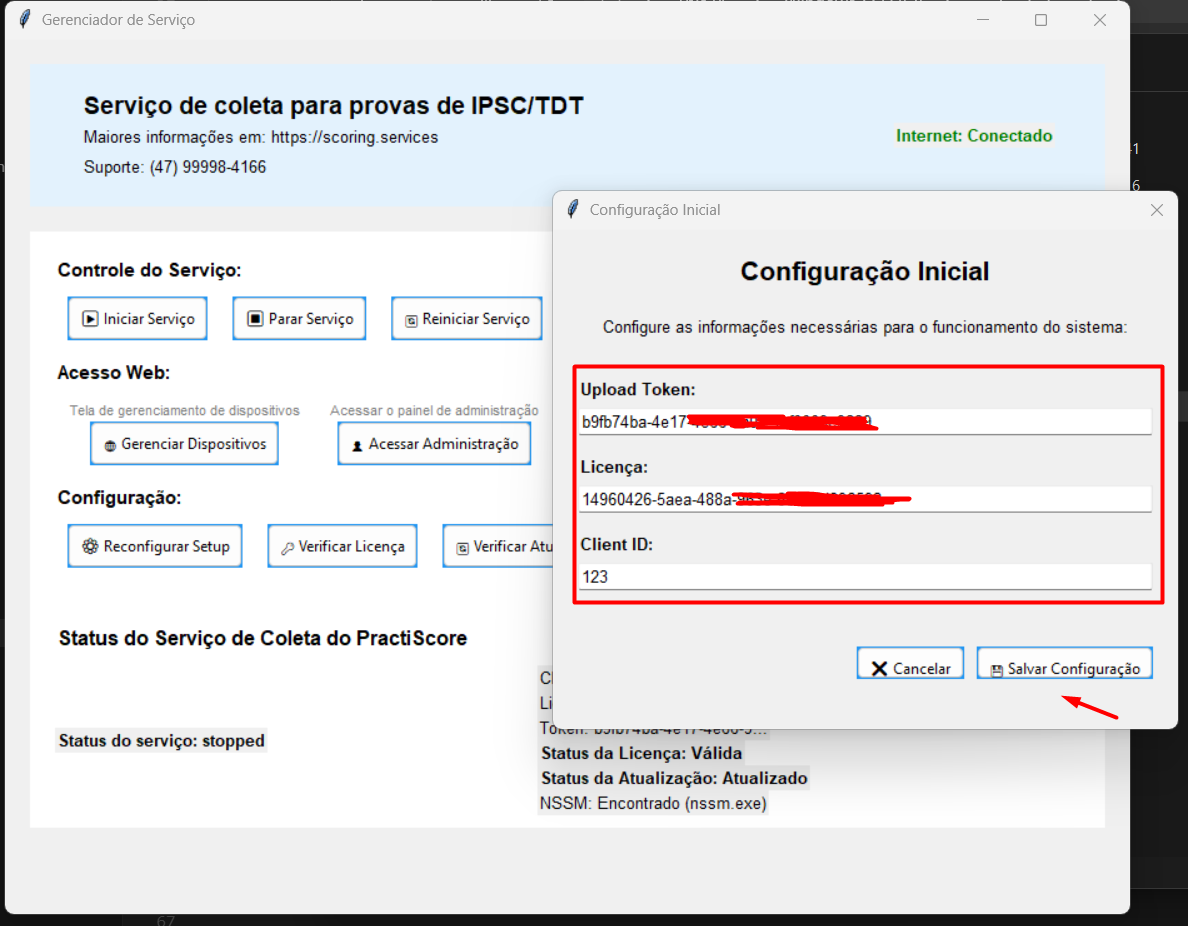

In the profile section, copy all three values and paste into the license screen in ps_service_manager.exe. Store them safely.
License portal (login.scoring.services)

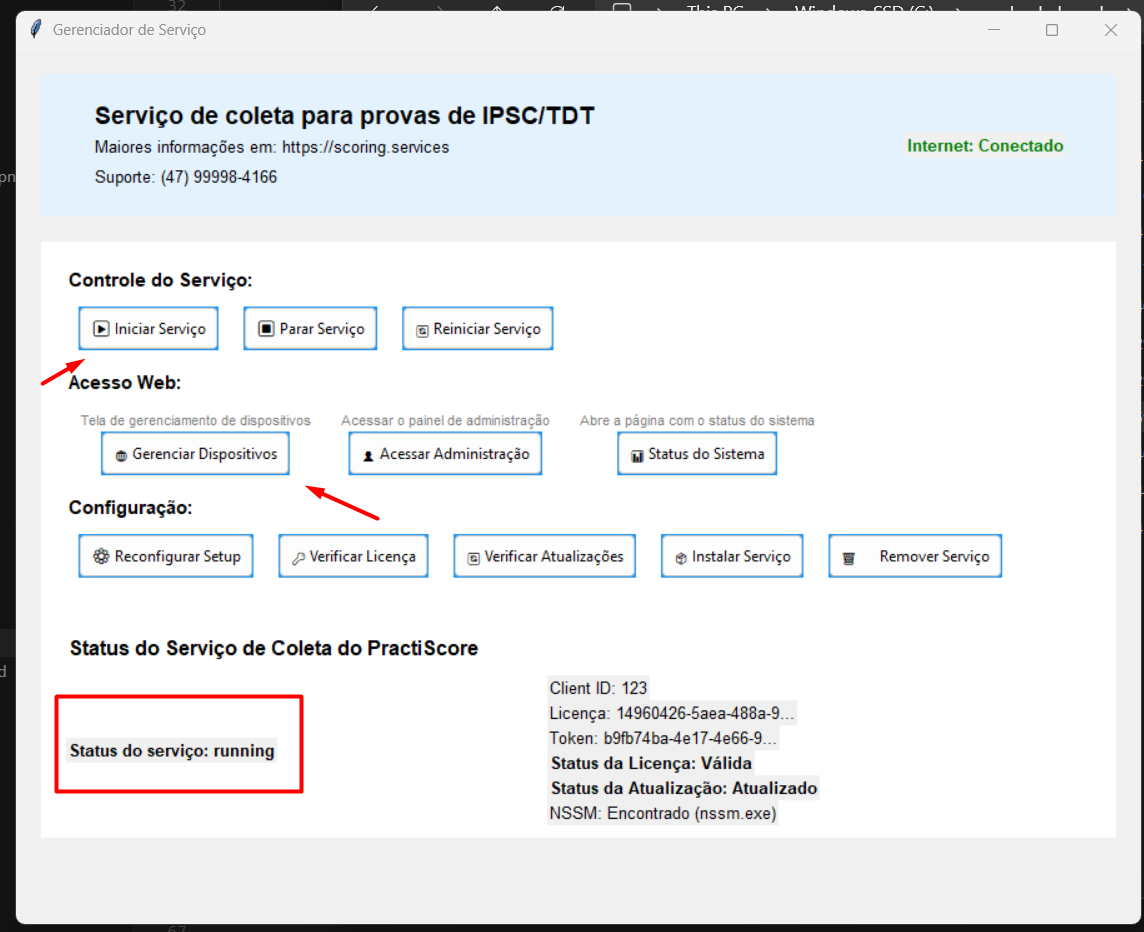

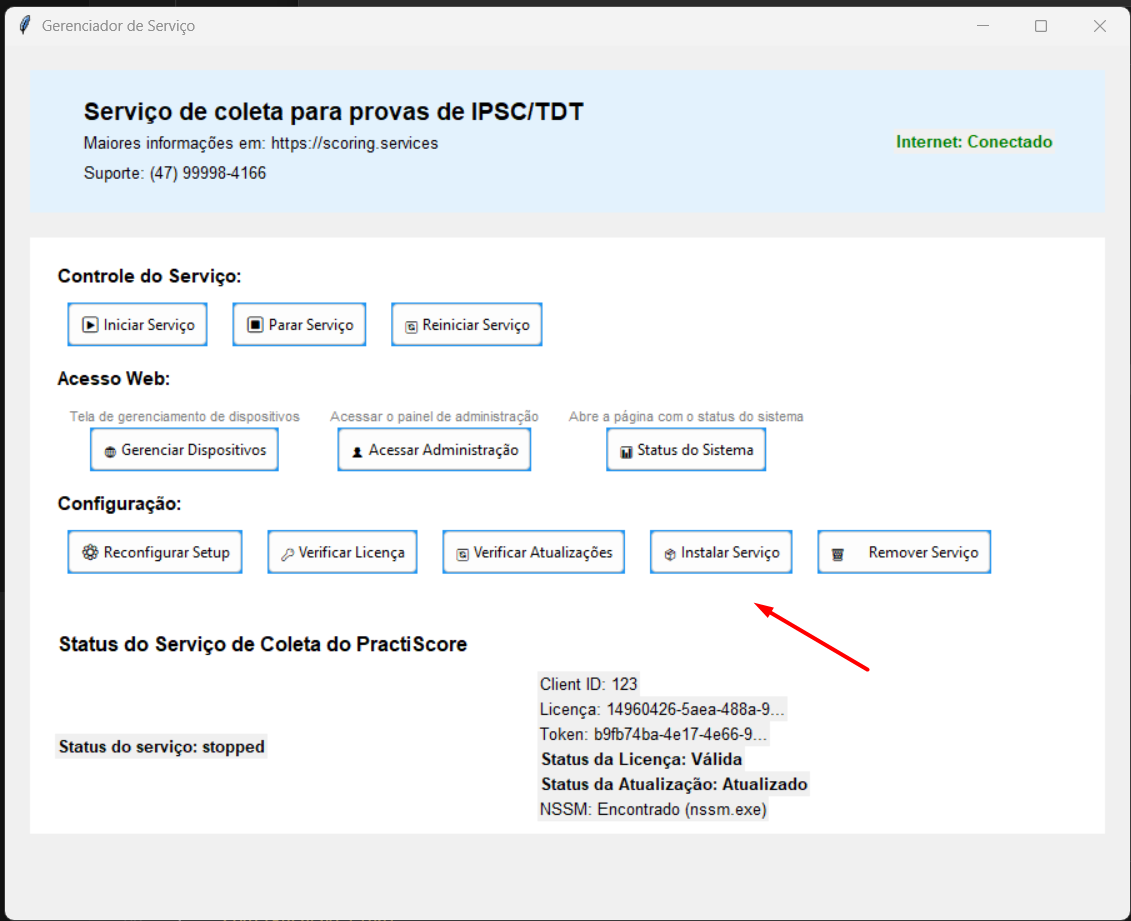

3. Service install and start
4. Tablet setup
-
Open devices interface

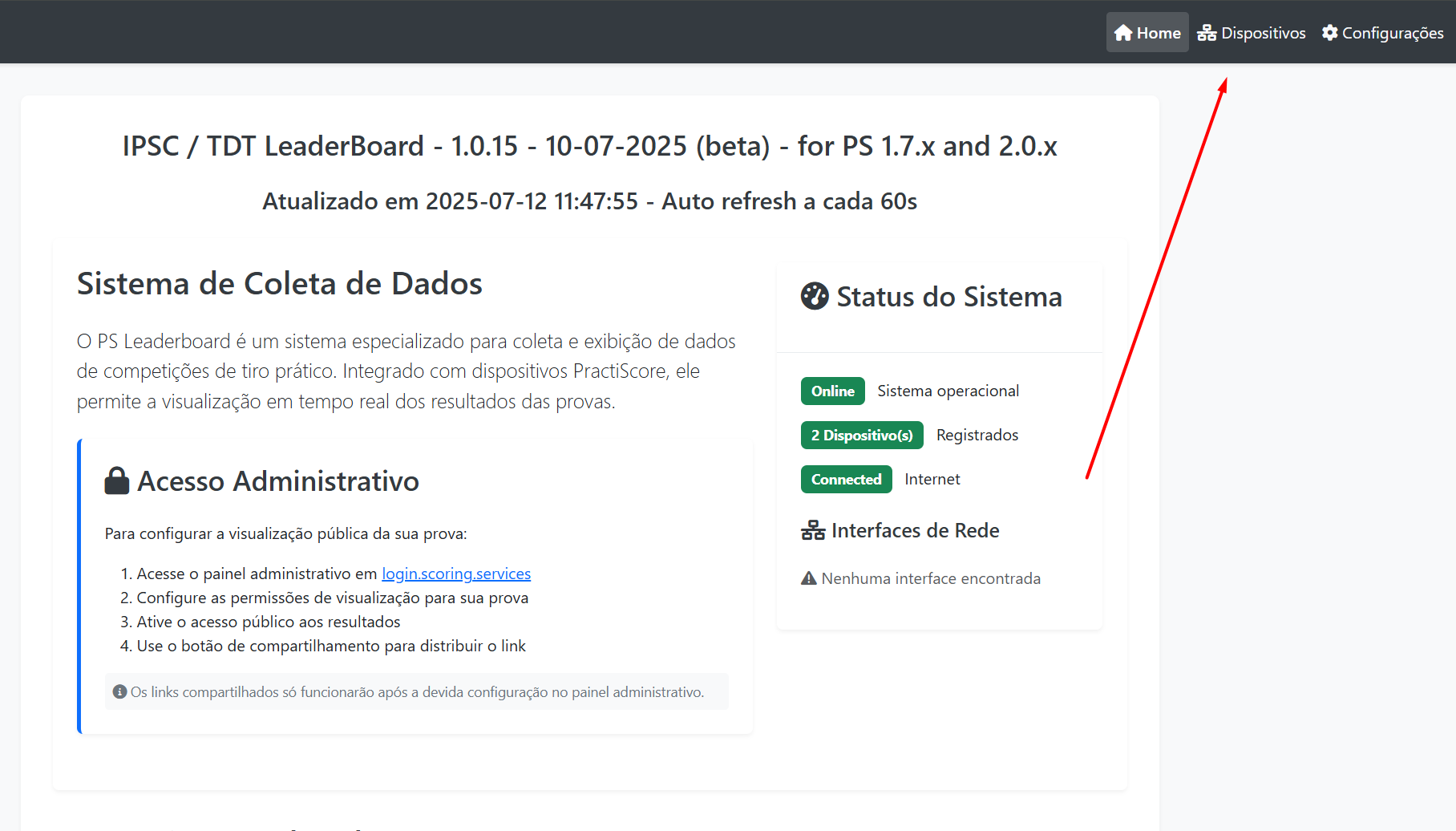

Open http://<IP>:5001/devices (replace <IP> with your computer IP, e.g. 192.168.1.100) or click Access in the service UI.
-

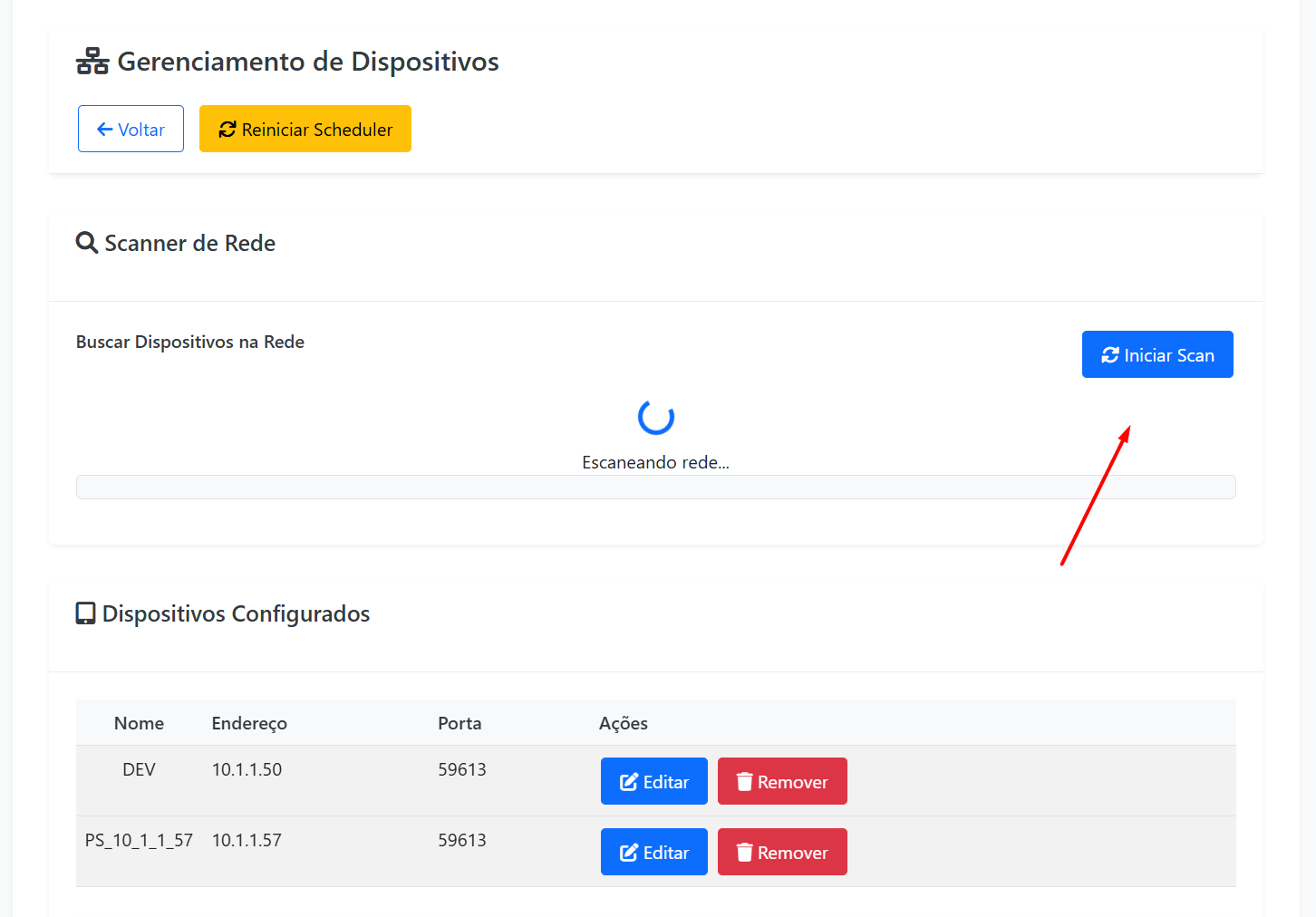

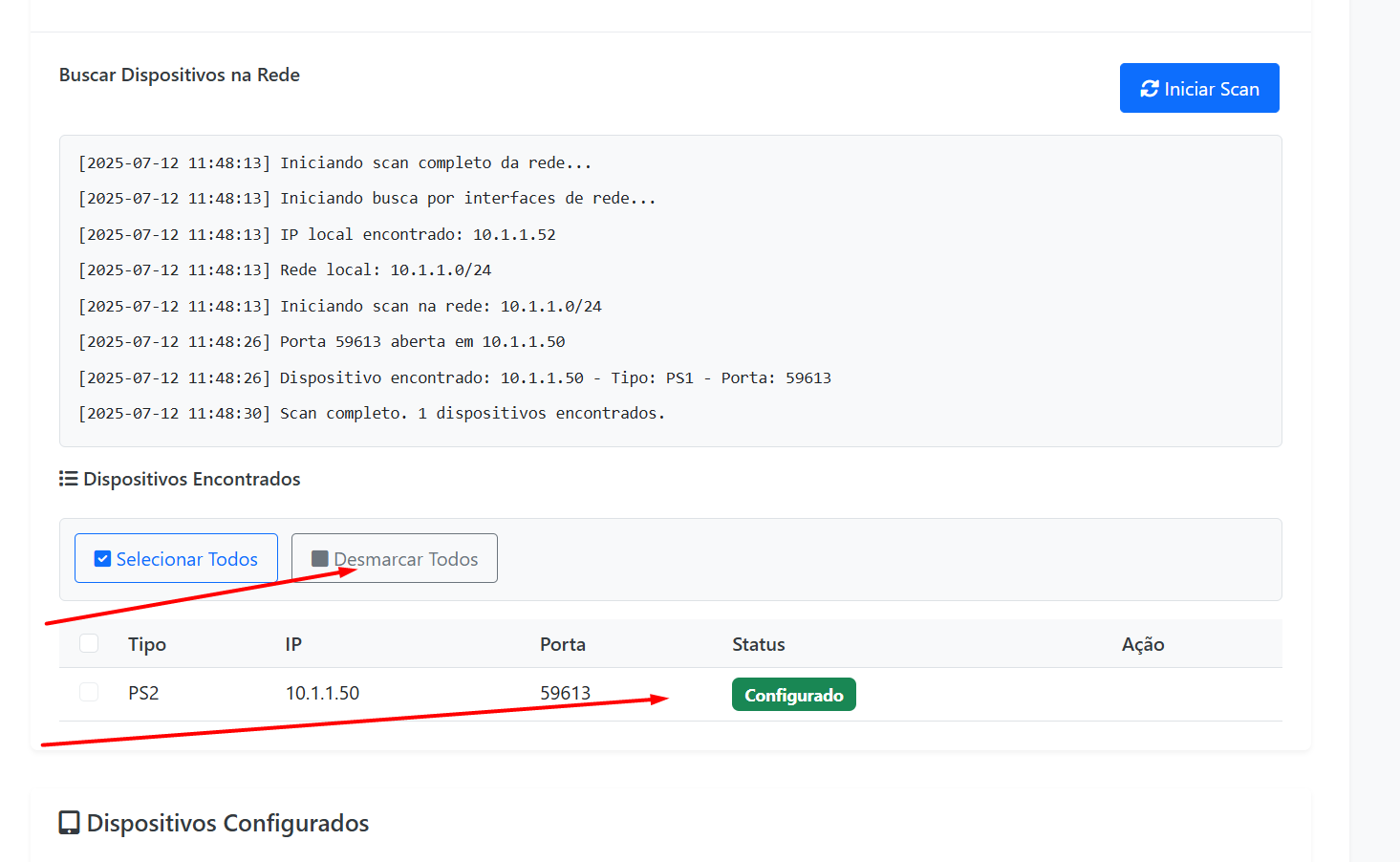

Scan and add tablets

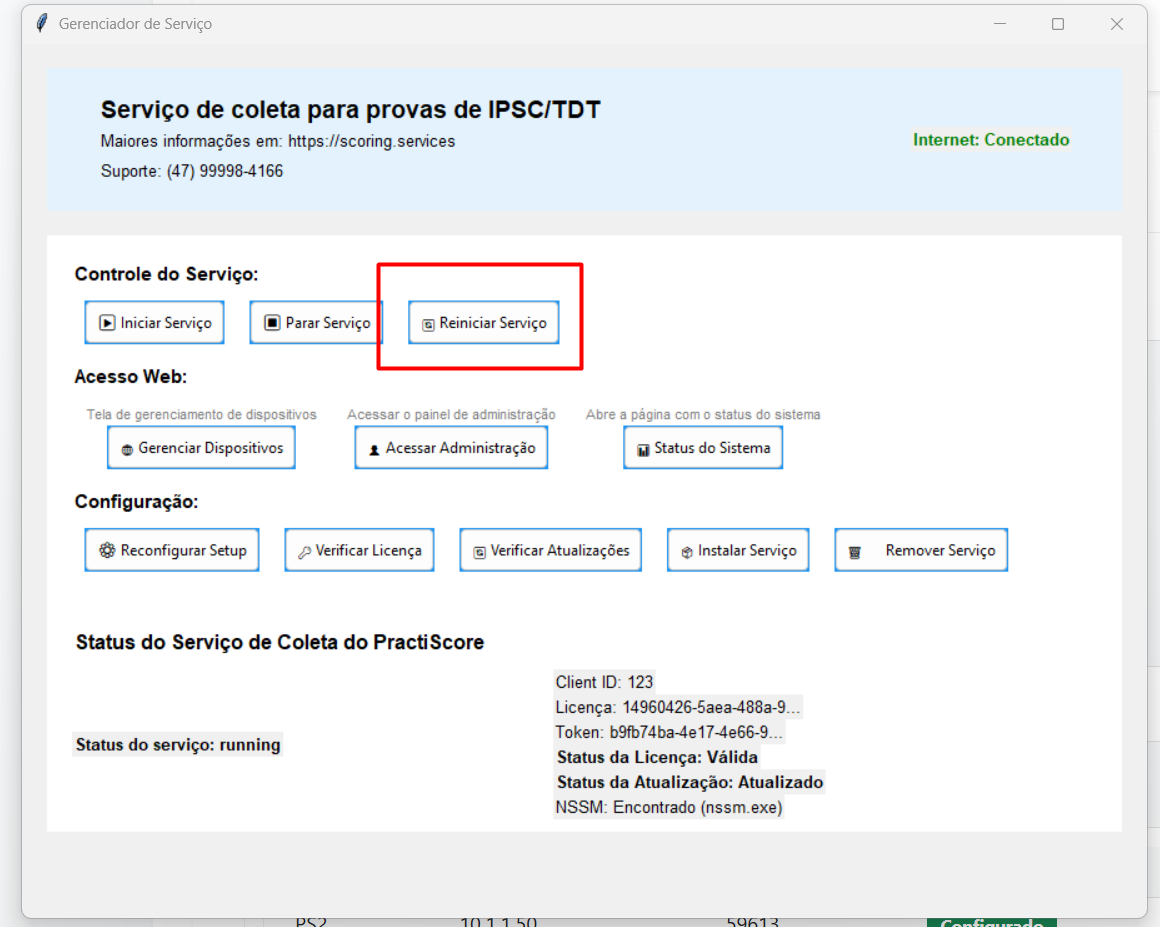

Click Start Scan, select PractiScore tablets on the network and confirm with Add/Connect. Restart the service after adding.
-

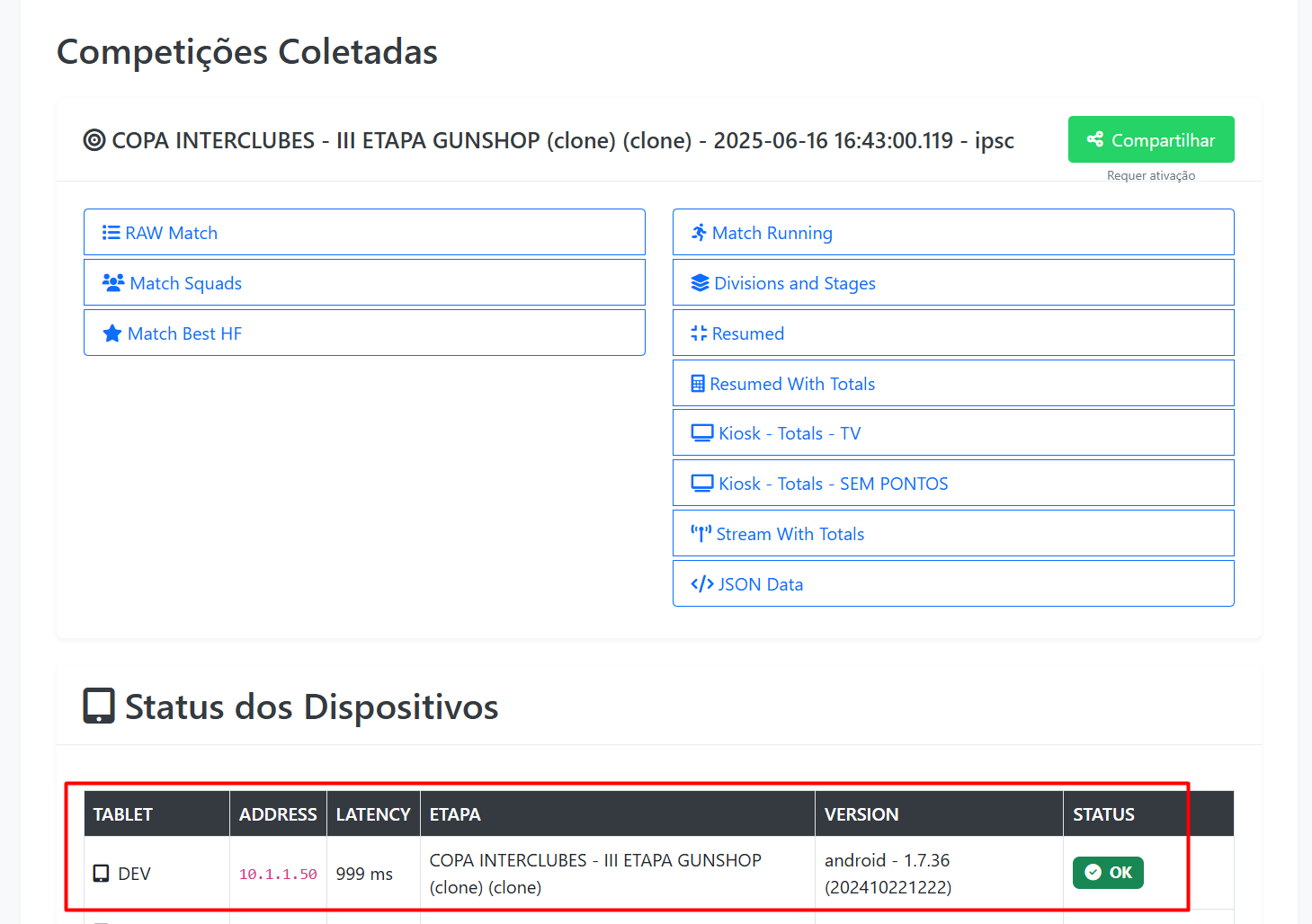

Verify data collection
With PractiScore open on the tablet, data appears in the panel within seconds.
Web devices interface

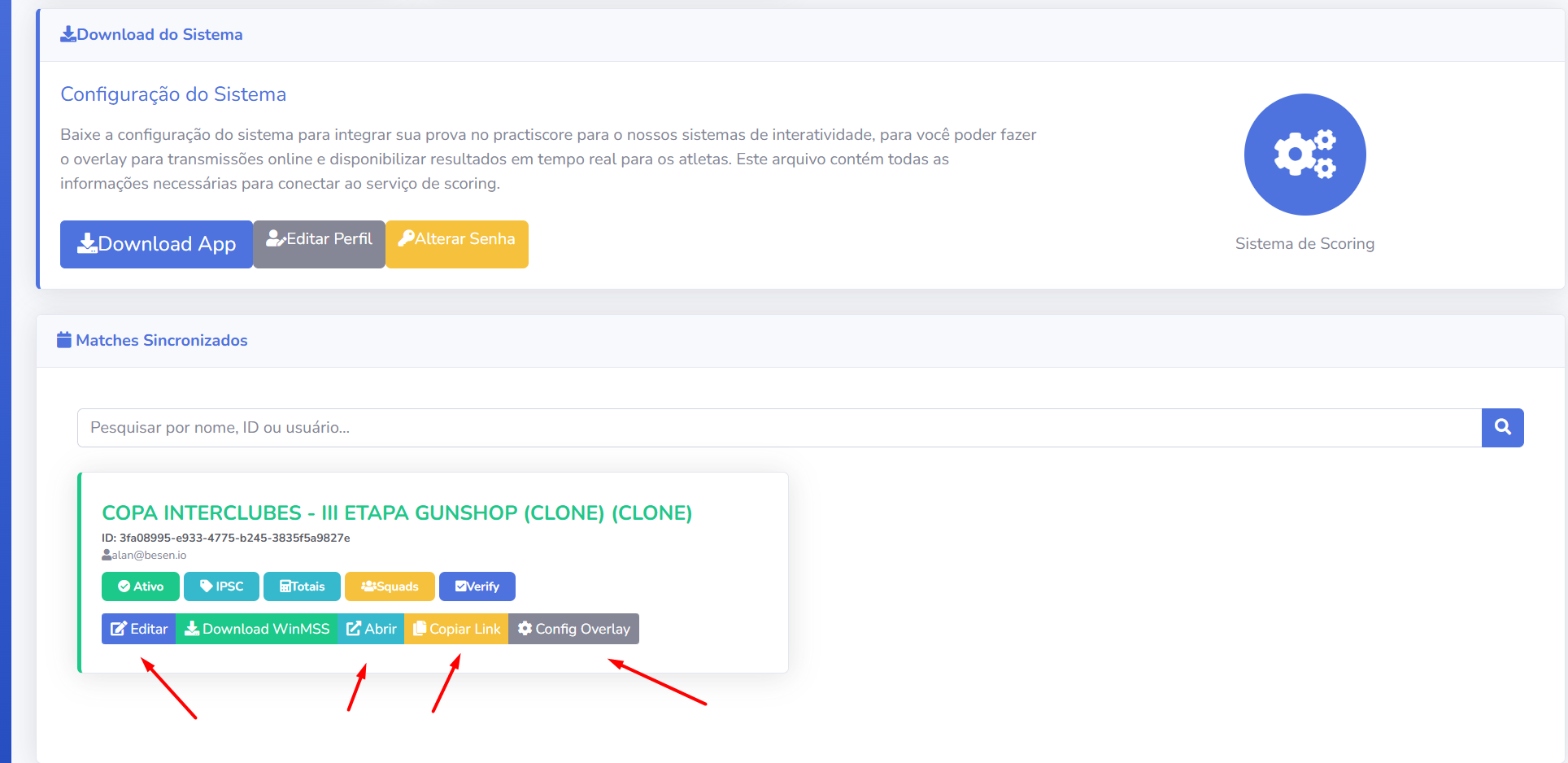

5. Administration panel
Features after installation
- Athletes: public link and m.scoring.services with live positions
- Broadcasts: OBS Studio overlay, Prism app and color/logo customization
- Administrators: device monitoring, match settings and reports
Recommended next steps
-
Test with a small match
Validate the full workflow before major competitions.
-
Configure overlay
Set up OBS/Prism for live match broadcasts.
-
Train ROs and share with athletes
Train range officers on tablets and share the match link or m.scoring.services.
Support and troubleshooting
- Confirm Windows 7+ and minimum RAM/disk
- Check firewall and same network between PC and tablets
- PractiScore 1.7.x or 2.0.x must be open on the tablet
- Questions: [email protected] or Instagram @scoring.services
Related links
Frequently asked questions
What are the requirements to install ps-leaderboard?
Windows 7 or newer, 4 GB RAM (8 GB recommended), 500 MB free, internet for activation and computer on the same network as tablets with PractiScore 1.7.x or 2.0.x.
Where do I download ps-leaderboard.zip?
Sign up at My account (/my-account) and sign in at login.scoring.services to download the file.
Why extract to C:\ps-leaderboard?
The C:\ps-leaderboard folder ensures proper permissions for the Windows service and ps_service_manager.exe.
How do I pair PractiScore tablets?
Open http://IP:5001/devices, run the local network scan, add tablets and restart the service.
